• Air or Cable Operated
• Stainless Trim
• Teflon Encapsulated Seals

Betts tapered seat emergency valves are designed and manufactured to use Teflon encapsulated seals for compatibility with a wide range of products. Body is constructed of aluminum with stainless steel trim. Shear section tested per TTMA RP84 and meets 49CFR178.345-8.

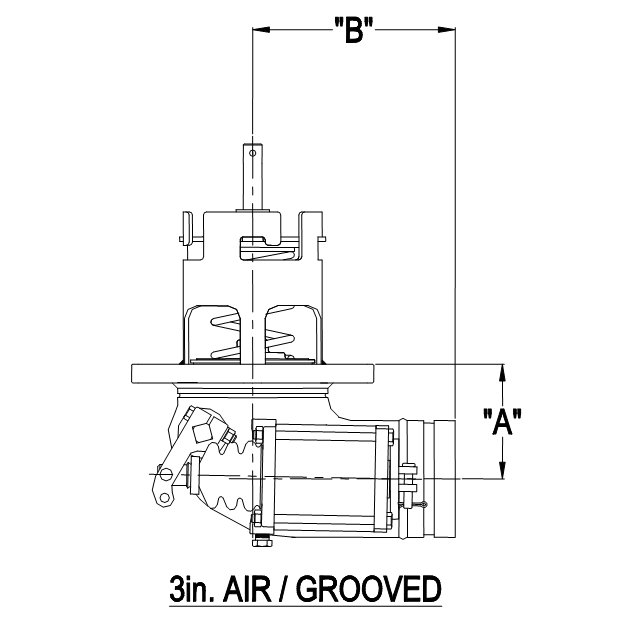

Air operated valves are provided with an external air cylinder to help prevent gasoline or other products from contaminating the air supply. The air cylinder is hard-coated aluminum with a polished stainless steel shaft. Cylinders have 1/8” NPT port for air connection and are supplied with a fusible plug installed.

Cable operated valves are supplied with a universal lever arm which provides up to 8 cable travel options to work with most operators. Lever arm is “E” Coated to provide exceptional corrosion resistance.

Left-hand valves are available with air cylinder or cable lever arm on opposite side of valve as shown at right. Add suffix –005 for left-hand option. Add suffix –004 for optional screen.
