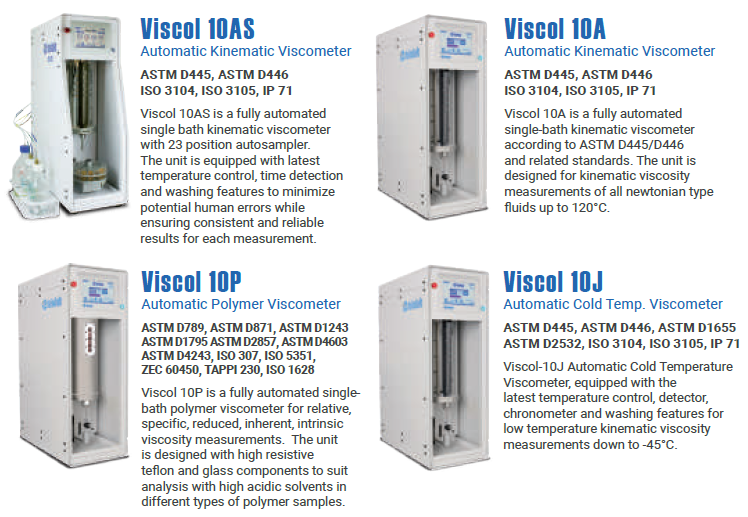

Viscol 10AS
Automatic Kinematic Viscometer
ASTM D445, ASTM D446, ISO 3104, ISO 3105, IP 71
Viscol 10A
Automatic Kinematic Viscometer
ASTM D445, ASTM D446, ISO 3104, ISO 3105, IP 71
Viscol 10P
Automatic Polymer Viscometer
ASTM D789, ASTM D871, ASTM D1243, ASTM D1795 ASTM D2857, ASTM D4603, ASTM D4243, ISO 307, ISO 5351, ZEC 60450, TAPPI 230, ISO 1628
Viscol 10J
Automatic Cold Temp. Viscometer
ASTM D445, ASTM D446, ASTM D1655, ASTM D2532, ISO 3104, ISO 3105, IP 71
Viscol 10AS
Automatic Kinematic Viscometer
ASTM D445, ASTM D446, ISO 3104, ISO 3105, IP 71
Viscol 10AS is a fully automated single bath kinematic viscometer with 23 position autosampler.
The unit is equipped with latest temperature control, time detection and washing features to minimize potential human errors while ensuring consistent and reliable results for each measurement.
Viscol 10A
Automatic Kinematic Viscometer
ASTM D445, ASTM D446, ISO 3104, ISO 3105, IP 71
Viscol 10A is a fully automated single-bath kinematic viscometer according to ASTM D445/D446and related standards.
The unit is designed for kinematic viscosity measurements of all newtonian type fluids up to 120°C.
Viscol 10P
Automatic Polymer Viscometer
ASTM D789, ASTM D871, ASTM D1243, ASTM D1795 ASTM D2857, ASTM D4603, ASTM D4243, ISO 307, ISO 5351, ZEC 60450, TAPPI 230, ISO 1628
Viscol 10P is a fully automated singlebath polymer viscometer for relative, specific, reduced, inherent, intrinsic viscosity measurements.
The unit is designed with high resistive teflon and glass components to suit analysis with high acidic solvents in different types of polymer samples.
Viscol 10J
Automatic Cold Temp. Viscometer
ASTM D445, ASTM D446, ASTM D1655, ASTM D2532, ISO 3104, ISO 3105, IP 71
Viscol-10J Automatic Cold Temperature Viscometer, equipped with the latest temperature control, detector, chronometer and washing features for low temperature kinematic viscosity measurements down to -45°C.
| Viscol 10A | Viscol 10B | Viscol 10P | Viscol 10J | Viscol 10AS | Viscol 20AS | ||
| Main application | Fuel & Oil, In-Service Oil |
Fuel & Oil, Bitumen |
Plastic, Polymer Paper & Pulp (Cellulose) |
Fuel & Oil, Jet Fuels |
Fuel & Oil, In-Service Oil |
Fuel & Oil, In-Service Oil |
|
| Viscometer type | Ubbelohde | ||||||
| Viscometer range | 170 - 225 Fold | ||||||
| Temperature range | Ambient to 120°C |
Ambient to 150°C |
10°C to 140°C | Viscol 10J-25 -25°C to 120°C |
Viscol 10J-40 -45°C to 120°C |
Ambient to 120°C |
Ambient to 120°C |
| Temperature sensitivity |
0.001°C | ||||||
| Temp. stability | 0.005°C | ||||||
| Time det. precision | 0.001 s | ||||||
| Caroussel capacity | N/A | 23 samples | 46 samples | ||||
| Measurement range | 0.15 cSt - 30000 cSt | ||||||
| Sample volume | 10-15 mL | ||||||
| Cleaning | Dual solvent per bath & SPW | ||||||
| Display | 7" Touch Panel Screen | 12" Touch Panel Screen |
|||||
| Data transfer | USB & Ethernet (RJ45) | ||||||
| Cooling | Built-in cooling coil per bath | ||||||
| Security | Low Bath Oil & Over Temperature Safety Interlocks | ||||||
| Weight | 40 Kg | 40 Kg | 40 Kg | 50 Kg | 50 Kg | 100 Kg | |
| Dimensions | 30 x 50 x 80 cm |
30 x 50 x 80 cm |
30 x 50 x 80 cm |
30 x 50 x 80 cm |
30 x 60 x 90 cm |
60 x 60 x 90 cm |
|
| Power requirement | 220 VAC - 50 Hz | ||||||
| CE Mark | |||||||
