Dip Tube Guide and Cap Assembly

features

The Betts Dip Tube Cap Assembly incorporates a pressure relief cap that allows the user to manually relieve pressure in the tube before removing the cap.  The Dip Guide Tube is fitted with fire screen (30 x 30 mesh) and screen guard that runs the entire length of the tube which allows for accurate measurement of the liquid in the tank.  When the cap is removed a ∅1.38″ (35 mm) hole allows for a measuring stick to be inserted into the tank (measuring stick not included). Conductive gaskets are supplied for mounting.  Cap assembly and dip guide tube are aluminum and internal O-rings come standard as fluorosilicone.  Please note: The Dip Tube Cap Assembly with in-line screen cannot be used with dipstick unless the screen is removed prior to installation of cap assembly.

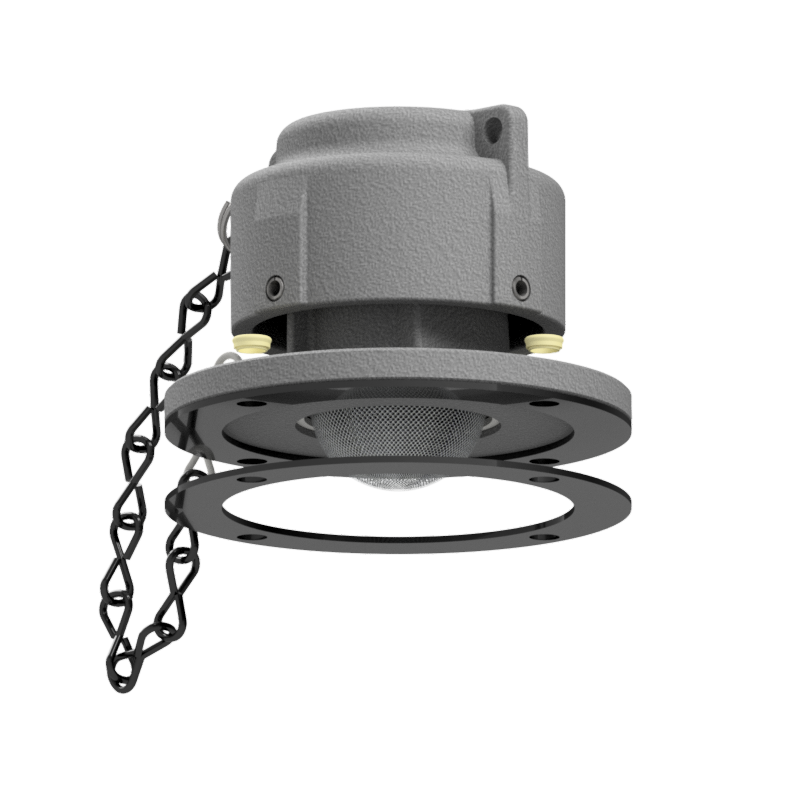

DT28765ALFS – Dip Tube Cap Assembly with In-line Screen

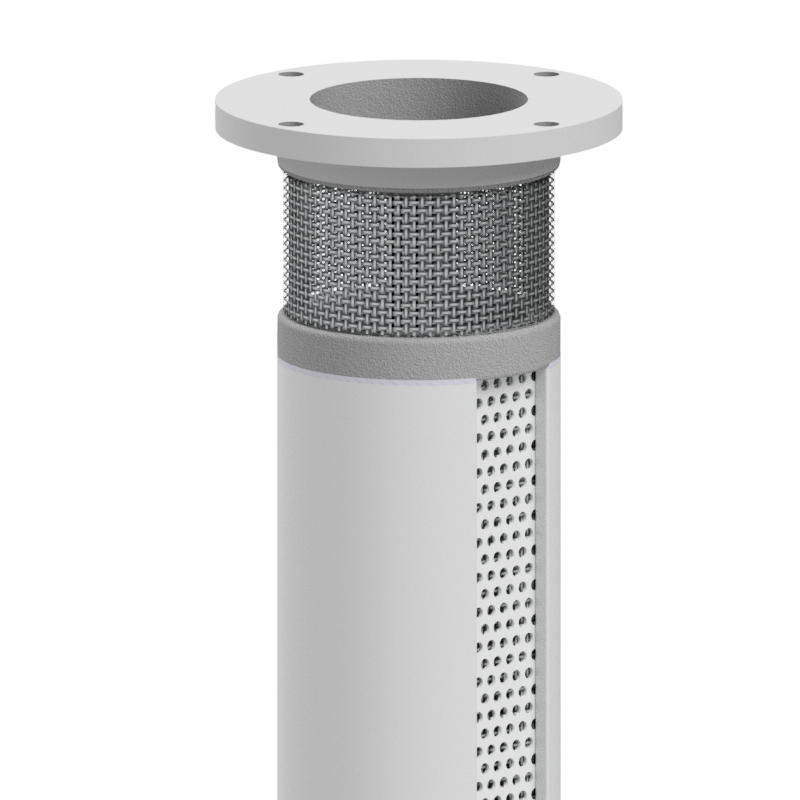

28675AL – Dip Guide Tube Assembly 71.75″(1,822 mm) Shoulder to bottom.
28675AL001 – Dip Guide Tube Assembly 80.57″(2,046 mm) Shoulder to bottom.
