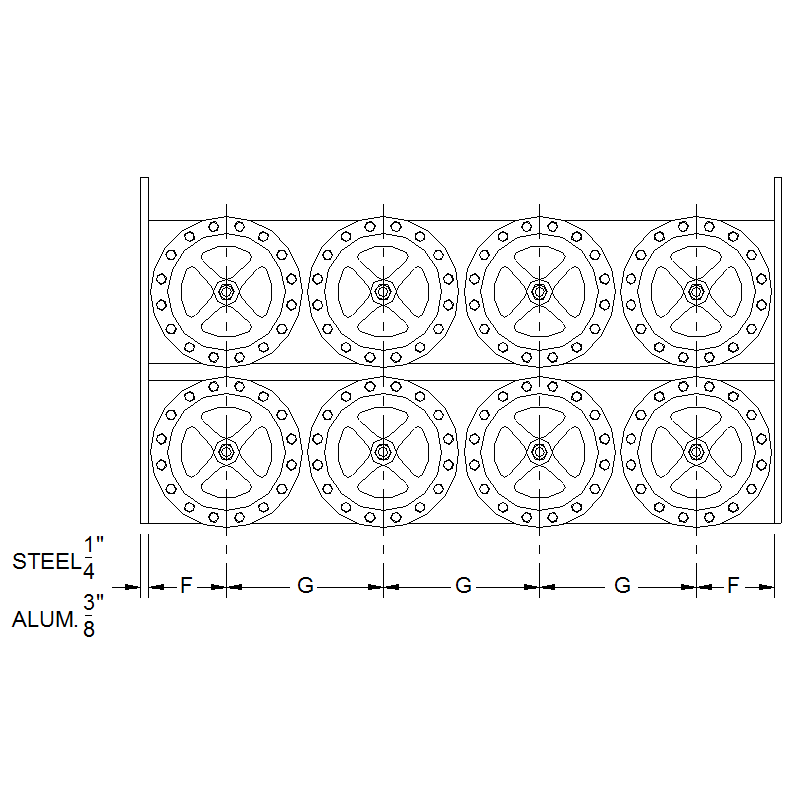

Manual Manifold (Dual Bank, Multi-Compartments)


The DUAL MANIFOLD with its close coupled inlets saves weight and space and provides the best arrangement for discharging split loads faster with minimum valve manipulation. The unique DUAL design reduces the number of valves, flanges, gaskets and connections to a minimum.

PRESSURE & TEMP. RATING: 5 PSI MAWP at ambient temperature

Manifold Valve Connections Section 1

Manifold Valve Connections Section 2
