• ASME SYMBOL & DATA PROVIDED
• THREADED HOLD-DOWNS
• 6” OR 10” HIGH COLLAR AVAILABLE
• Maximum Allowable Working Pressure: 75 psig
• Test Pressure: 115 psig
• Meets DOT 178.345-5 Requirements

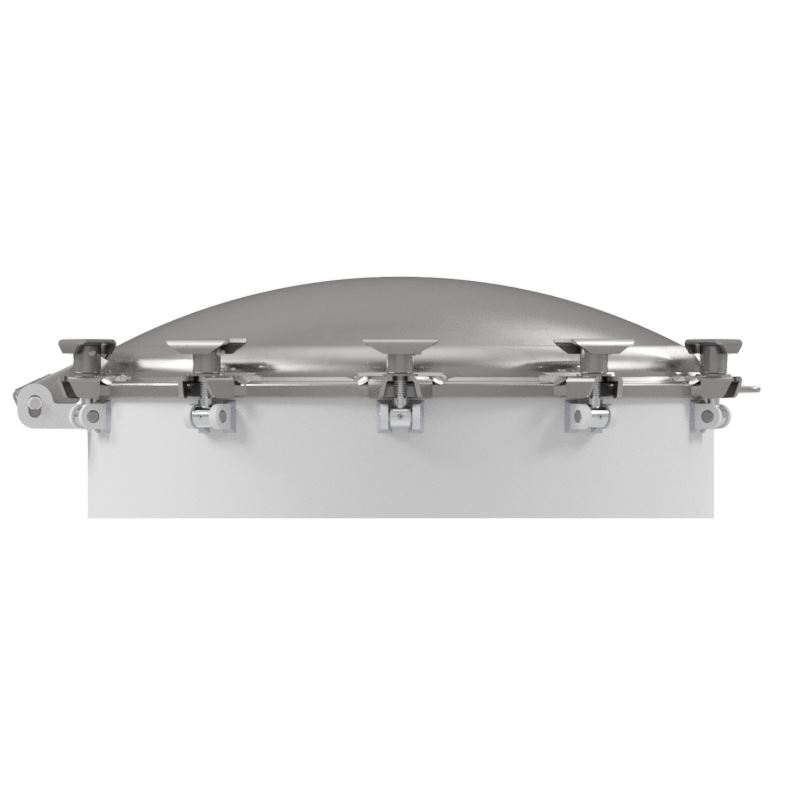

This Tiona 30” Full Opening Manhole conforms to the requirements of the ASME code for pressure vessels Section VIII, Division 1.

Part Numbers:

8530ACX-6 = Aluminum Collar Assembly / 304 SS Cover Assembly / Less Gasket

8530TCX-6 = 304 SS Collar Assembly / 304 SS Cover Assembly / Less Gasket

8530LCX-6 = 316 SS Collar Assembly / 316 SS Cover Assembly / Less Gasket

Gasket P/N 4254_ _

Contact Betts Representative for other available numbers.
