Hydraulic Distributor

DESCRIPTION

features

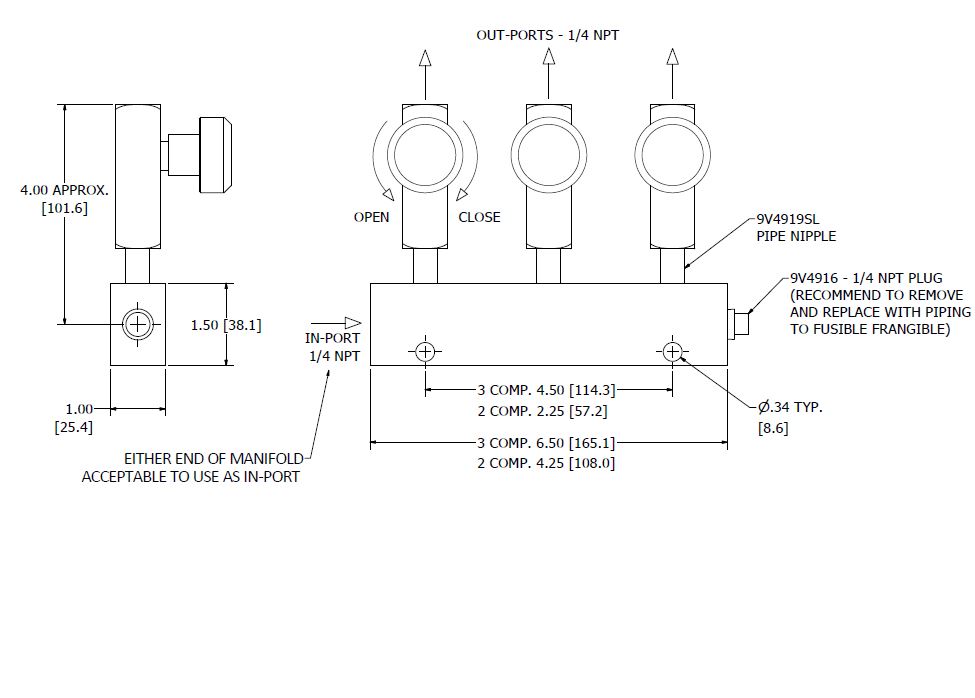

This hydraulic distributor consists of a multiple outlet manifold with individual control valves for each cargo tank compartment. It is used to manually select which valves are actuated for a multi-compartment cargo tank. When a control valve is closed, it blocks the flow of hydraulic fluid from the pump to the valve, yet flow can always travel from valve back to the pump. This unique and critical feature is required to insure the proper function of the emergency shut-down system as-well-as protects the valve from over-pressurization due to possible thermal expansion.

Betts prides itself in being able to provide products that meet a customer’s specific needs. As a result we do offer modifications to our product standards. While not every request is always feasible, we do our best to meet your specific needs. In many cases this modification is noted by adding a suffix to the end of the standard part number. The following is a non-inclusive list of common options that are available for this product line . If the options listed below do not meet your requirements please contact one of Betts’ Customer Service Representatives for further assistance. Please note that some product modifications may result in extended lead times.
