Betts offers a variety of ASME swing-bolts for the Full Opening Manhole product line. All ASME swing-bolts are a solid one-piece design made from 17-7 stainless steel with 5/8-11 UNC threads. Wing-nuts are 304 stainless steel.

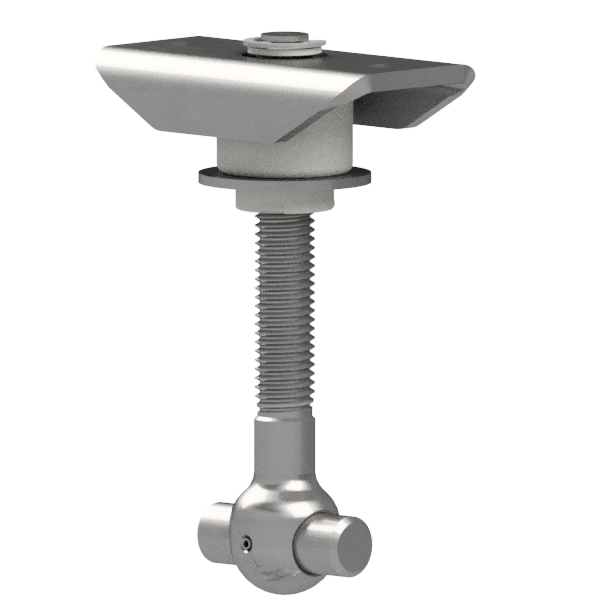

Wing-nut includes a staked-on bearing washer for decreased wear and a retention e-clip is included on top of swing-bolt to keep the wing-nut from accidentally unthreading off of the swing-bolt while opening manhole. Assemblies ending in “002” include swing-bolt pin (4463SL) and 1/8” coil pin (9Q8605). Please note: older style swing-bolts have a larger coil pin hole diameter; therefore, specify the “002” kit to ensure the necessary replacement components are received.
Swing-bolt / wing-nut assemblies will last longer if properly maintained. Keep threads clean and lubricated with anti-seize compound, and never hit wing-nuts with a hammer. Use proper wing-nut tools 6443SS or 6469SL with a maximum torque of 45 ft-lbs.

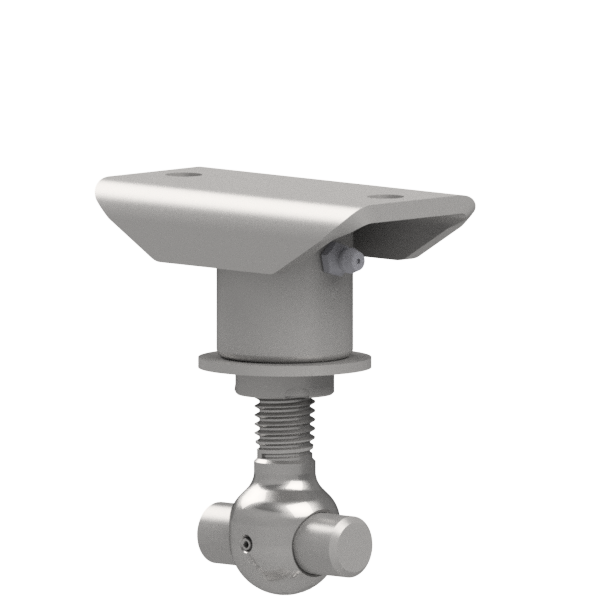

The sealed wing-nut option offers a solid top-plate to protect the threads from water or debris and also includes a grease fitting for preventive maintenance.
