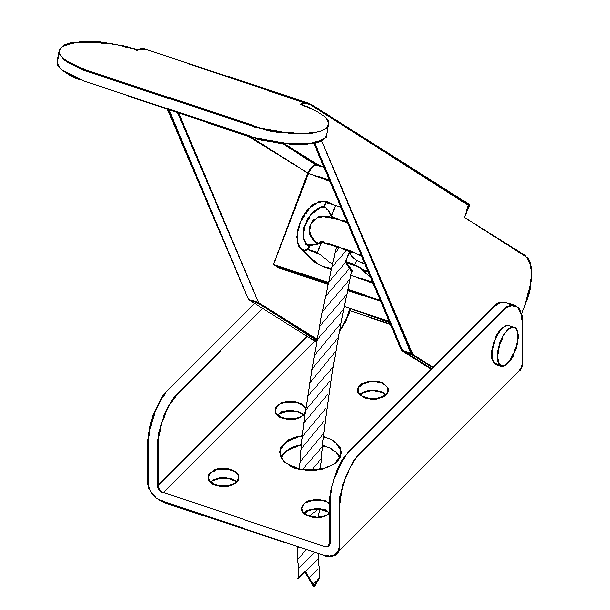

Trip Lever / Remote Control Assembly


New design provides greater stroke (2-1/8”) and leverage. Stainless steel to resist corrosion. Remote attaches to trip lever on operator using cable. Pulling remote lever rotates operator trip lever and bar assembly, causing all open emergency valves to close. Per 49CFR178.345-11, remote must be located at least 10 feet away from loading/unloading outlet (where vehicle length allows) or on the end of the cargo tank farthest from the loading/unloading outlet. Test cable remote controls and operators at least once a day to insure proper functioning.
