Products

features

  • Complete Drainage
  • Opens Into Tank
  • Simplified Design
  • Outside Screw & Yoke

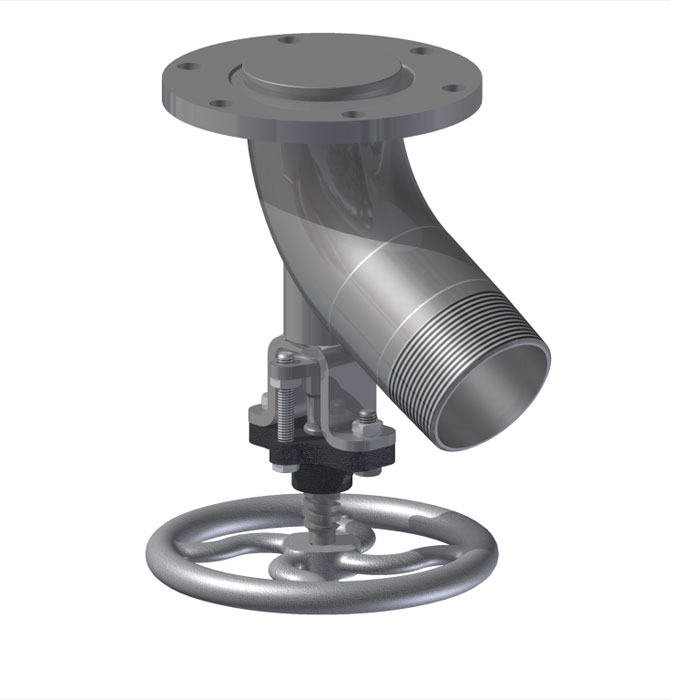

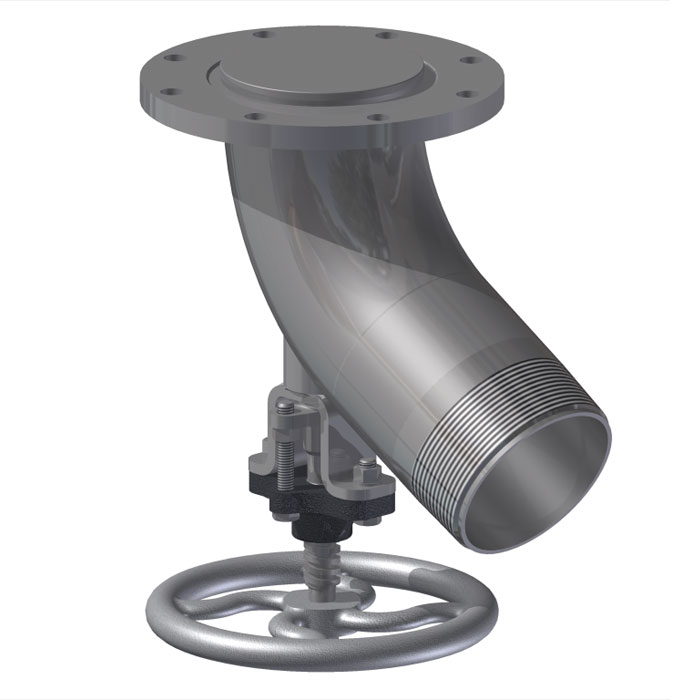

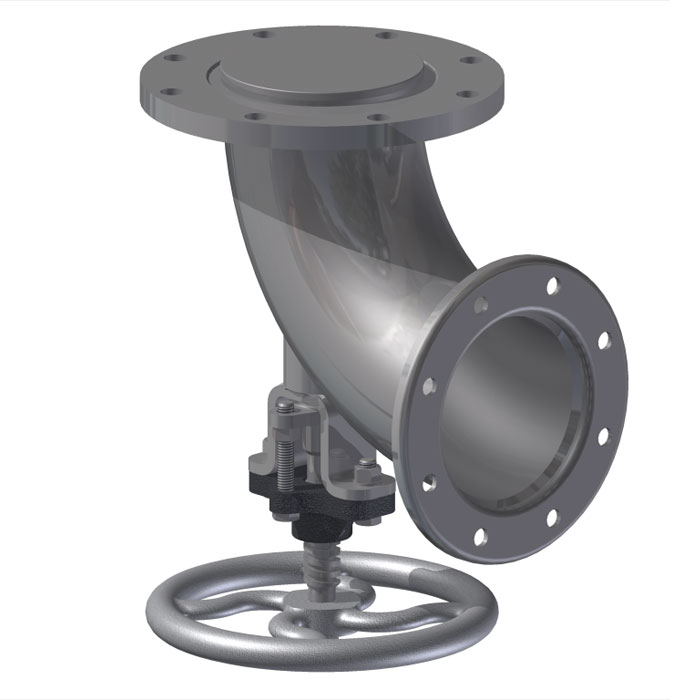

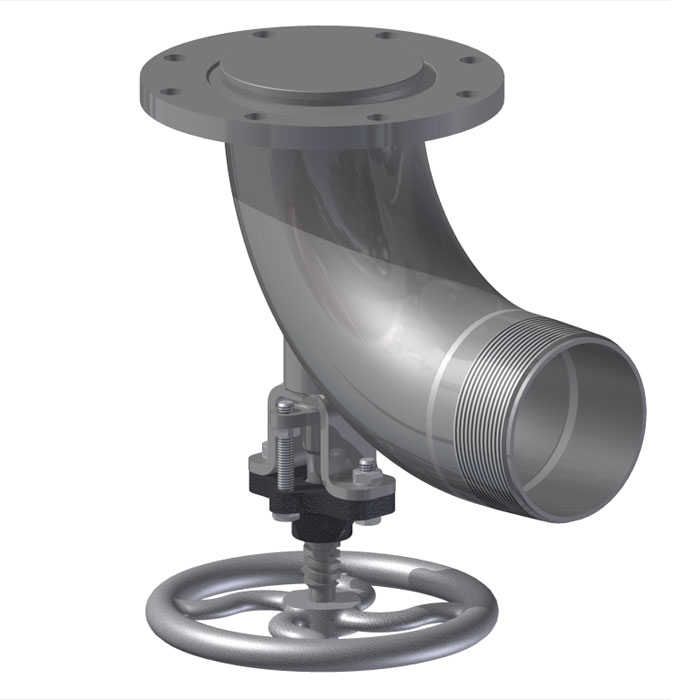

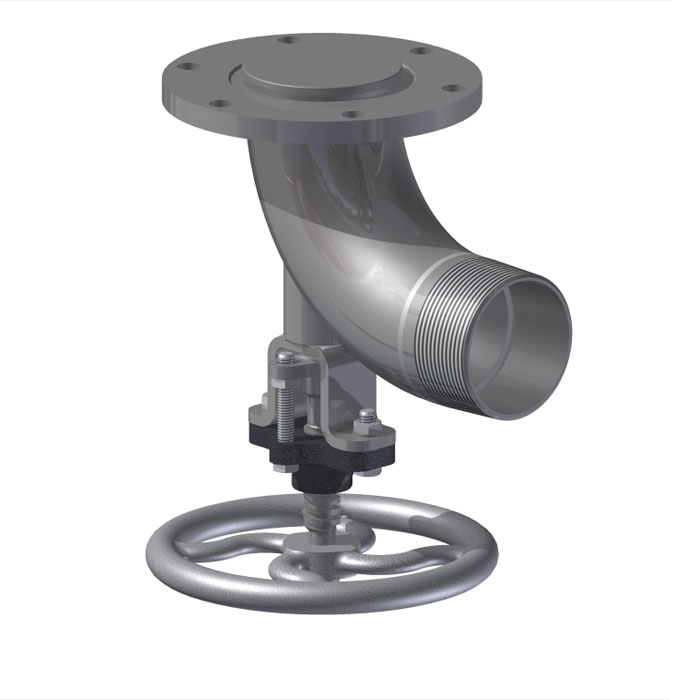

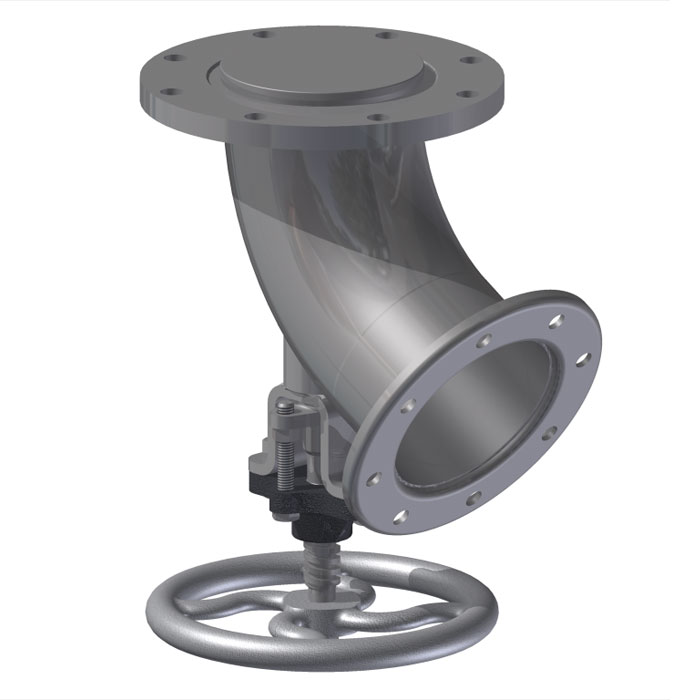

With a metal to metal seat, the Betts Flush Valve is designed to handle heavy, viscous material. Fabricated design provides greater strength with less weight, full direct flow, complete drainage and replaceable parts. The outside screw and yoke keeps threads free of product, maintaining smooth operation.

Temperature Rating: Steel or Stainless 500°F. max.

NOTE: This valve must be mounted in a vertical position. Horizontal mounting will not allow the disc to seat properly. To close valve turn Handwheel in direction as shown in last valve image. (clockwise rotation as viewed facing Handwheel). During this closing operation Handwheel will move outward exposing more of the stem threads.
