• Compact
  • Stainless Steel Wetted Parts
  • Positive Sealing
  • Teflon Encapsulated Seals

Constructed of 316 stainless steel with Tef-Sil seals for compatibility with a wide range of products.  The Ecliptic valve may be used as a line valve when installed between two flanges or as an outlet valve with a selection of outlets such as 3” NPT, BPS, LAT cam and grooved adapters.

Manual valves feature a stainless handle assembly that locks in the open and closed positions.

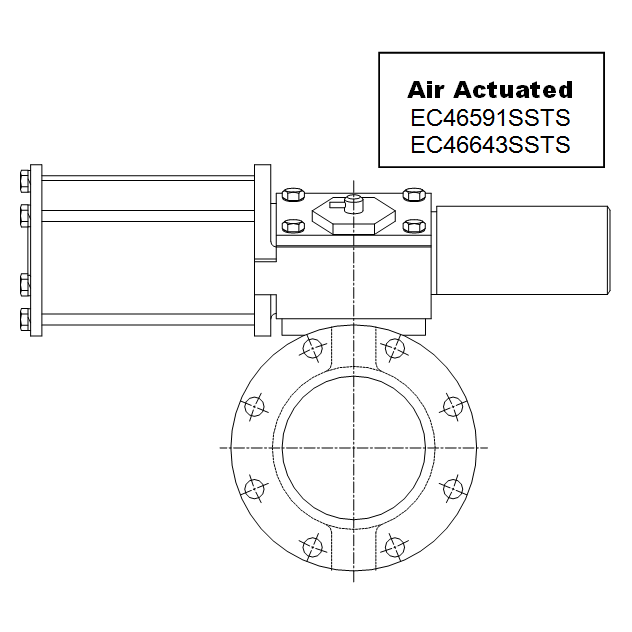

Air actuated valves available as air to open/spring to close, spring to open/ air to close, or air to open/air to close.  Air actuators have indicator pin to show valve position.

It is the responsibility of the purchaser based on his or her knowledge to determine the compatibility of these materials with its intended use.
