• Air or Cable Operated
• Tapered Seat
• Teflon Encapsulated Seals

Betts Stainless Steel Emergency Valves are equipped with Teflon encapsulated O-ring seals which are compatible with a wide range of products. The tapered seat is self-cleaning to lessen the possibility of seat damage due to foreign objects. The stuffing box features two O-ring seals to provide positive sealing.

Air operated valves are provided with an external air cylinder to help prevent gasoline or other products from contaminating the air supply. The air cylinder is hard-coated aluminum with a polished stainless steel shaft. Cylinders have 1/8” NPT port for air connection and are supplied with a fusible plug installed.

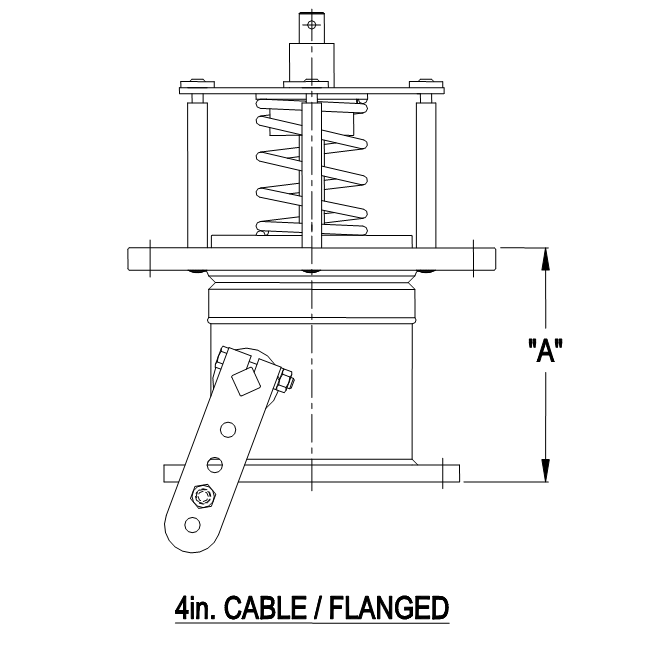

Left-hand valves are available with air cylinder or cable lever arm on opposite side of valve as shown at right. Add suffix –005 for left-hand option. Add suffix –004 for optional screen.
